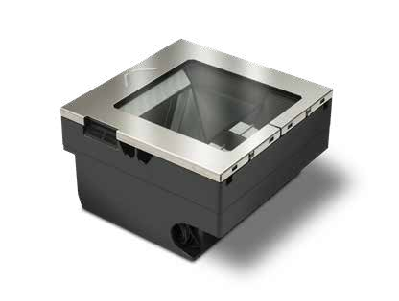

Magellan 3510HSi Fixed Retail Scanner

Magellan 3510HSi Fixed Retail Scanner

The Magellan 3510HSi by Datalogic is an in-counter barcode reader. It delivers advanced digital scanning for point of sale, mobile marketing, age verification, and 2D barcodes.

Category:

Description

The Magellan 3510HSi by Datalogic is an in-counter barcode reader. It delivers advanced digital scanning for point of sale, mobile marketing, age verification, and 2D barcodes. The large field of view simplifies the scanning process. It reads all bar codes, whether hard to read, printed, or on mobile devices. Plus, it’s easy to install, requiring a single 5V USB connection. The Magellan 3510HSi uses the same cables, mounts and exterior plastics as the Magellan 3550HSi, making it easy to integrate into existing installations.

  • Advanced digital imaging provides class-leading performance and reliability
  • Seamless 1D, 2D and Digimarc® digital watermark reading
  • Smoothly reads all bar codes, whether displayed on cell phones or printed
  • Subtle, adaptive illumination for user comfort
  • Solid-state electronics for silent operation and superior reliability
  • Powers from single Type A USB port- 2.5 W, available Magellan Customer Service Scanner (CSS)
  • with omni-mount for reading cell phones, coupons and loyalty cards
  • Software driven – flexible and upgradeable
  • Image capture
  • Micro SD card slot
  • Multiple interfaces in every unit
  • Powered USB auxiliary port – Not enabled when connected to 5V USB Type A host port
  • Checkpoint Systems and Tyco Sensormatic EAS compatible
  • Diagnostics reporting
  • EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI
Decoding Capability
1D / Linear Codes Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D Codes Aztec Code, Data Matrix (ECC200 only), QR Code
Stacked Codes GS1 DataBar Composites; GS1 DataBar Expanded
Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked
Omnidirectional; Micro PDF417, PDF417
Digital Watermarks Optional support for Digimarc® Barcodes / GS1 DW
Code
Electrical
Power Requirements AC Input: 100-240 VAC, 50-60 Hz
DC Input: 5-12V
Power Consumption Maximum: 2.25W @ 5V; 3.3W @ 12V
Typical (RMS): 1.6W @ 5V; 2.1W @ 12V
Sleep Mode (RMS): 0.95W @ 5V; 1.25W @ 12V
Environmental
Ambient Light 0 to 86,100 lux
ESD Protection
(Air Discharge)		 25 kV
Humidity (Non-Condensing) 5 – 95%
Particulate and Water
Sealing		 IP52
Temperature Operating: 10 to 40 °C / 50 to 104 °F
Storage/Transport: -40 to 70 °C / -40 to 158 °F
Interfaces
Interfaces OEM (IBM) USB; RS-232; USB Keyboard, USB Com,
USB TEC
Auxiliary Ports Powered Type A USB (USB Com requires power
supply or 12V Host power)
Optional Features
EAS Features Checkpoint Systems: Integrated EAS hardware will work with Counterpoint IX and Evolve D11 models; Sensormatic: Good Read Acknowledgement
Value Added Features Diagnostic Reporting; Host Download; Magellan ULE Scripting
Physical Characteristics
Dimensions Magellan Model 3510HSi:
Depth (Below Counter): 8.7cm / 3.4in
Length:15.2cm / 6.0 in
Width:15.2cm / 6.0 in
Weight 0.98 kg /2.16 lb
Reading Performance
Image Capture Graphic Formats: BMP, JPEG
Image Sensor 1 MP; 1280 x 800 pixels; Graphic Formats: JPEG, BMP
Light Source Multiple diffused LEDs, orientation and wavelength
optimized for eye comfort
Print Contrast Ratio
(Minimum)		 25%
Read Height 10.2 cm / 4.0 in
Read Rate (Maximum) 30 Million pixels per second
Reading Angle Pitch: +/- 65°; Roll (Tilt): 0 – 360°; Skew (Yaw): +/- 75°
Reading Indicators Audio beeper with adjustable tone and volume;
Good Read LED; Good Transmission
Resolution (Maximum) 5 mil
Safety & Regulatory
Agency Approvals The product meets necessary safety and regulatory approvals for its intended use.The Quick Reference Guide for this product can be referred to for a complete list of certifications.
Environmental Compliance Complies to China RoHS; Complies to EU RoHS
LED Classification EN62471 and IEC62471 Lamp Illumination – Exempt Group
Utilities
Scanalyzer Magellan Scanalyzer configuration software is available for download at www.datalogic.com.
OPOS / JavaPOS OPOS and JavaPOS utilities are available for download at no charge.
Warranty
Warranty 3-Year Factory Warranty
