QuickScan Lite QW2100 Handheld Retail Scanner

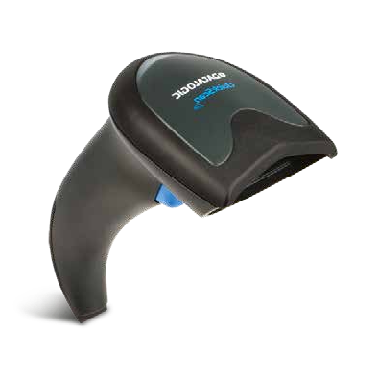

QuickScan Lite QW2125 Handheld Scanner

The QuickScan™ Lite QW2125 linear imager is a beginner-friendly handheld scanner designed especially for scanning both long and shortened bar codes. It is ideal for retail, light manufacturing, document and bill processing, as well as banking and finance

Category:

Description

The QuickScan™ Lite QW2125 linear imager is a beginner-friendly handheld scanner designed especially for scanning both long and shortened bar codes. It is ideal for retail, light manufacturing, document and bill processing, as well as banking and finance. Compact, light, and ergonomically shaped, the QW2125 imager ensures comfort for continuous daily use. It demonstrates efficient scanning capabilities across a variety of 1D bar codes, boasting a broad scanning angle and an elongated scanning line. This feature is particularly beneficial for capturing the longer and wider bar codes often found on utility bills and electronic part packaging. The device’s scanning line is thinner and brighter, enabling scanning over broad angles without needing to increase the scanning distance.

  • Wide scan angle
  • Laser-like thinner and extended scan line
  • Datalogic’s patented ‘Green Spot’ technology for good-read feedback
  • Two interface options: USB or Keyboard Wedge / RS-232
  • Built with over molded rubber to protect the imager when dropped
  • Compact and multi-position stand
  • Water and Particulate Sealing Rating: IP42
  • Drop Resistance to 1.5 m / 5.0 ft
  • Uses the same cables and power supplies as the current QuickScan products
  • Bulk packaging available (10 scanners per box)
  • USB Certified Kits available
  • Remote Host Download lowers service costs and improves operations (-RM models only)
  • EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI
Decoding Capability
1D / Linear Codes Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.
Postal Codes China Post
Stacked Codes EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional
Electrical
Current Operating (Typical): <180 mA @ 5 VDC
Standby/Idle (Typical): <25 mA @ 5 VDC
Sleep Mode:
USB Suspend (QW2120): <2 mA @ 5 VDC
Low Power Mode (QW2170): <6 mA @ 5 VDC
Input Voltage 5 VDC +/- 0.5 V
Environmental
Ambient Light 120,000 lux
Drop Resistance Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface
ESD Protection
(Air Discharge)		 16 kV
Humidity (Non-Condensing) 5 – 95%
Particulate and Water
Sealing		 IP42
Temperature Operating: 0 to 50 °C / 32 to 122 °F
Storage/Transport: -40 to 70 °C / -40 to 158 °F
Interfaces
Interfaces QW2170-BK: RS-232 / Keyboard Wedge
QW2120-BK: USB
Physical Characteristics
Dimensions 17.0 x 6.5 x 7.0 cm / 6.7 x 2.5 x 2.7 in
Weight 119.0 g / 4.2 oz
Reading Performance
Light Source Red LED 610-650 nm
Print Contrast Ratio
(Minimum)		 25%
Read Rate (Maximum) 400 reads/sec.
Reading Angle Pitch: +/- 65°; Roll (Tilt): +/- 45°; Skew (Yaw): +/- 70°
Reading Indicators Beeper (Adjustable Tone); Datalogic ‘Green Spot’ Good
Read Feedback; Good Read LED; Good Transmission
Resolution (Maximum) 0.102 mm / 4 mils (1D Codes)
Field of View 56° +/- 2
Reading Ranges
Typical Depth of Field Minimum distance determined by symbol length and scan angle.
Printing resolution, contrast, and ambient light dependent.

5 mils : 2.5 to 15.0 cm / 1.0 to 6.0 in
7.5 mils : 0 to 24.0 cm / 0 to 9.4 in
10 mils: 0 to 35.0 cm / 0 to 13.8 in
13 mils: 0 to 40.0 cm / 0 to 15.7 in
20 mils: 0 to 60.0 cm / 0 to 23.6 in
Safety & Regulatory
Agency Approvals The product meets necessary safety and regulatory approvals for its intended use.

The Quick Reference Guide for this product can be referred to for a complete list of certifications.
Environmental Compliance Complies to China RoHS; Complies to EU RoHS
LED Classification EN62471 and IEC62471 Lamp Illumination
Exempt Group
Utilities
Datalogic Aladdin™ Datalogic Aladdin configuration program is available for download at no charge.
OPOS / JavaPOS JavaPOS Utilities are available for download at no charge.
OPOS Utilities are available for download at not charge
Remote Host Download Lowers service costs and improves operations (-RM models only)
Warranty
Warranty 3-Year Factory Warranty
