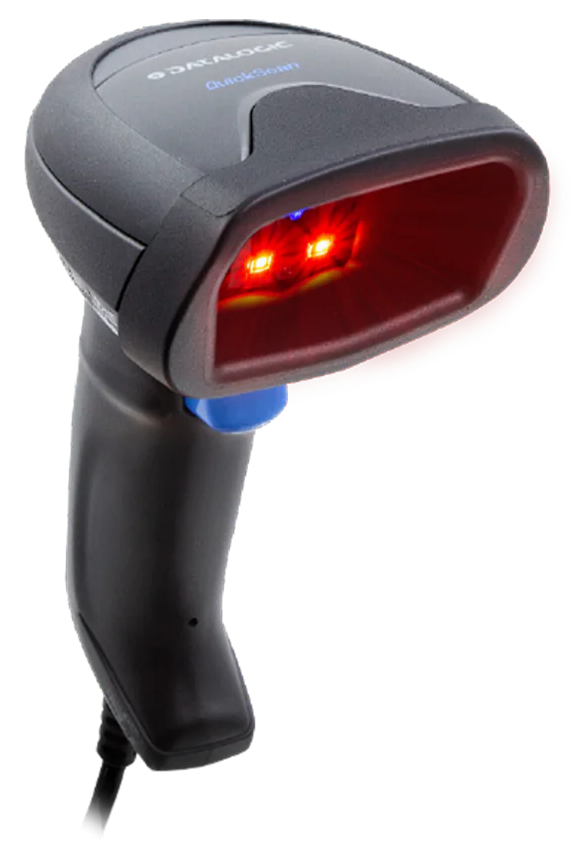

QuickScan QW2520 Handheld Scanner

QuickScan QW2520 Handheld Scanner

Category:

Description

The QuickScan™ 2500 from Datalogic is a sophisticated 2D corded handheld scanner designed for entry-level use. It excels in decoding a wide array of barcodes, effortlessly handling those that are damaged, difficult to decipher, or poorly printed. This scanner is versatile enough to read all barcode formats, including 1D and 2D, postal codes, stacked or composite barcodes, dotcodes, and digital watermark codes. Its straightforward and efficient configuration process, along with compatibility with various host systems, positions it as the all-in-one scanning solution for any business.

The QuickScan™ 2500 imager is equipped with an extensive set of features ready for immediate use. Its 1 MP optical system delivers top-tier scanning performance and depth of field for a broad range of applications. Users need not concern themselves with the orientation of the barcode, thanks to the scanner’s omnidirectional capabilities. Additionally, the device includes an easy-to-use aiming system, that ensures precise and guided scanning every time.

  • Choice of optics between 1 MP for superior scanning and Depth Of Field (QD, QM and QBT) and VGA (QW) for the extra-affordability
  • Datalogic LED-based technology with extreme precision aiming system
  • Datalogic’s ‘Green Spot’ technology for superior good-read feedback
  • MotionixTM patented motion-sensing technology for seamless reading mode transitions
  • Omnidirectional reading for 1D, 2D, postal codes, stacked and composite bar codes, dot codes and Digital Watermark codes
  • Choice of Bluetooth 4.0 wireless technology model or Datalogic’s STAR Cordless System (radio frequencies available in 433 MHz or 910 MHz)
  • Multi-interface options: RS-232 / USB / Keyboard Wedge, including USB-C
  • AladdinTM 3.0 configurator provides the latest GUI, search engines, and an on-line version that offers the ability to generate programming barcodes to scan directly on a smartphone
  • EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI
Decoding Capability
1D / Linear Codes Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D Codes Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code; Dot code
Postal Codes Australian Post; British Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Postnet; Royal Mail Code (RM4SCC)
Stacked Codes EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites
Digital Watermarking Digimarc Barcodes (QD2500, QM2500, QBT2500 only)
Electrical (Cordless Models)
Battery Type Lithium-Ion: 3250 mAh
Charge Time (Scanner only) Type-C External Power: 3 Hours
Charge Time (via Cradle) External Power: 4 Hours @ 12 VDC
Reads per Charge 115,000
Environmental
Ambient Light 0 – 110,000 lux
ESD Protection (Air Discharge) 16 kV
Humidity (Non-Condensing) 0 – 95%
Particulate and Water Sealing IP52
Temperature Operating: 0 to 50 °C / 32 to 122 °F
Storage/Transport: -40 to 70 °C / -40 to 158 °F
Interfaces
Interfaces (Cordless Models) BC2090: USB Type C / USB / RS-232 Multi-Interface
Physical Characteristics
Colors Available Black, White
Dimensions Scanner only (Cordless Models): 15.9 x 6.8 x 10.7 cm / 6.2 x 2.7 x 4.2 in
Weight 206.5 g / 7.3 oz (cordless models, battery included)
Reading Performance
Light Source Aiming: Blue LED emission 468 nm
Illumination: Red LED emission 617 nm
Print Contrast Ratio (Minimum) 15% (specific configuration required)
Reading Angle Pitch: +/- 65°; Roll (Tilt): 360°; Skew (Yaw): +/- 65°
Reading Indicators Beeper (Adjustable Tone and Volume); Datalogic ‘Green Spot’ Good-read feedback on the code; Good-read LED
Resolution (Maximum) QD2500, QM2500, QBT2500: 0.077 mm / 3 mils (1D Linear); Data Matrix: 0.127 mm / 5 mils; QR Code: 0.17 mm / 6.7 mils
Reading Ranges
Typical Depth of Field Code 39: 5 mils: 0.5 to 25.0 cm / 0.2 to 9.8 in
Data Matrix: 10 mils: 0.5 to 21.5 cm / 0.2 to 8.5 in
EAN/UPCA: 13 mils: 0.5 to 51.0 cm / 0.2 to 20.1in
Safety & Regulatory
Agency Approvals The product meets necessary safety and regulatory approvals for its intended use. Refer to the Quick Reference Guide for a complete list of certifications.
Environmental Compliance Complies to China RoHS; Complies to EU RoHS
Utilities
Datalogic Aladdin™ Datalogic Aladdin configuration program is available for download at no charge.
OPOS / JavaPOS JavaPOS and OPOS Utilities are available for download at no charge.
Warranty
Warranty 5-Year Factory Warranty
